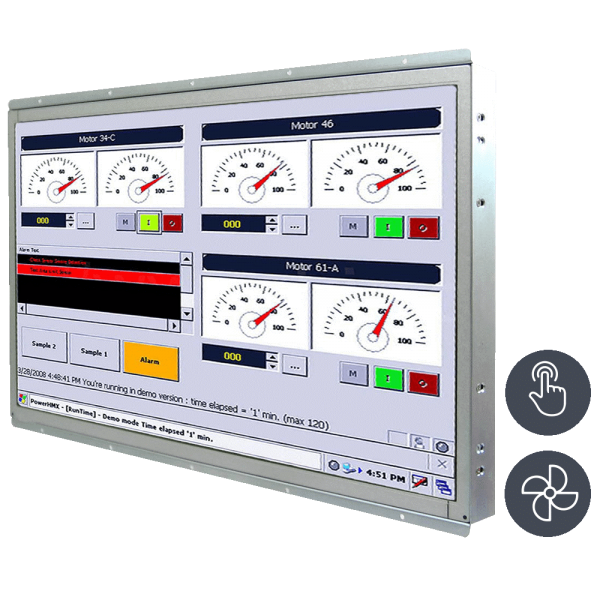

WM 22W-IK70-OF
Touch-Screen for 1-Finger Operation
Built-in Panel PC for professional use Industrial Panel PC in sturdy open-frame steel sheet design Rear cover protected against contact (cage chassis) Designed for industrial applications in continuous operation Long-term availability
21-Einbau-Industrie-Panel-PC-W22IK7T-OFA3-1.png / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von Hinten) / Touch-Screen für 1-Finger-Bedienung
Order number:
23220870
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23220870 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | W22IK7T-OFA3 |
| mechanics: | Open Frame |
| dimensions width: | 32 |
| dimensions height: | 50,5 |
| dimensions depth: | 7,5 |
| Material housing: | Stahlblech / steel sheet |
| protection device: | IP22 |
| colour: | RAL 7035 / light grey |
| controls: | 3 Keys: Power On/Of, Reset, Brightness |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 21,5 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| voltage input DC: | 12 V/DC |
| external power supply: | external, 100–240 VAC |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI-D |
| HDMI: | 1 x HDMI (Type-A) |
| DisplayPort: | 1 x DisplayPort |
| Video: | 1 x Composite (PAL / NTSC) |
| USB: | 4 x USB 3.0 |
| serial: | 2 x RS-232, 1 x RS232/422/485 |
| Audio: | Line-Out, Line-In, Mic in |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| PS/2: | 2x Mini-DIN |
| Mainboard form factor: | Mini-ITX |
| chipset: | Intel Q170 |
| CPU Typ: | Core i3 |
| CPU Model: | 7100T |
| CPU 64bit: | Ja |
| CPU speed: | 3,4 GHz |
| CPU cores: | 2 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel HD Graphics 630 |
| Audio Controller: | Realtek ALC283 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 2 |
| CPU class: | Core i3 / i5 / i7 |
| CPU alternative option 1: | Core i3-7xxx |
| CPU alternative option 2: | Core i5-7xxx |
| CPU alternative option 3: | Core i7-7xxx |
| Expansion slots: | 1 x PCIe-x16 |
| HDD design: | 2.5" |
| HDD max. number: | 1 |
| HDD connection: | SATA |
| HDD capacity (GB): | 500 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I225LM + I219LM |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| WLAN : | Ja / yes |
| WLAN-Standard : | 802.11 a |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| Betriebssystem: | Windows 10 IoT Enterprise ENTRY |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
