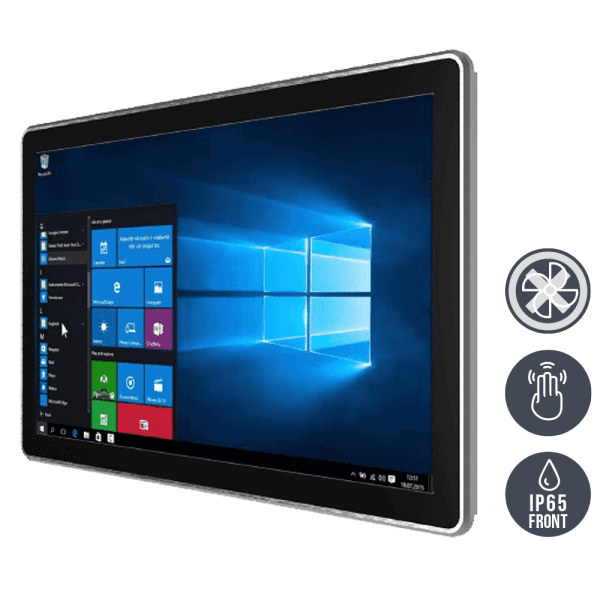

W22IT7T-PPA3
Multitouch-Screen,
Projected-Capacitive (PCAP)
Projected-Capacitive (PCAP)
Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability
01-PCAP-Multitouch-Industrie-Panel-PC-W22IT7T-PPA3.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-PCAP-Multitouch-Industrie-Panel-PC-W22IT7T-PPA3.jpg / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
23221141
gross price: €2,374.05
€1,995.00 *
gross price: €2,374.05
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23221141 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | PP-Serie |
| Manufacturer item number: | W22IT7T-PPA3 |
| mechanics: | Panel Mount |
| dimensions width: | 53,3 |
| dimensions height: | 32,4 |
| dimensions depth: | 7,8 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| colour: | Aluminium eloxiert / anodized aluminum |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 21,5 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| HDMI: | 1 x HDMI 2.0 (optional) |
| DisplayPort: | 1 x DisplayPort |
| USB: | 4 x USB 3.2 Gen.1x1 (Type-A) |
| serial: | 2 x RS232 |
| Audio: | Mic-In, Line-Out |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Core i5 |
| CPU Model: | 1135G7 |
| CPU 64bit: | Ja |
| CPU speed: | 2,4 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1449 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 64000 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 3200 |
| Grafik Controller: | Intel Iris Xe Graphics |
| safety: | TPM 2.0 |
| Expansion slots: | 2 x M.2 slot |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Betriebssystem: | Optional |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
