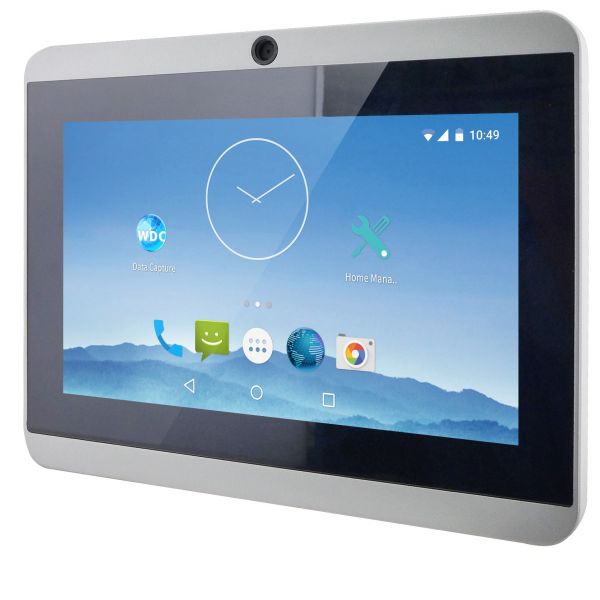

W07RK3S-PCO1AC-PoE
Multitouch-Screen, Projected-Capacitive (PCAP)

HMI Panel PC with multitouch for professional use Flat PCAP glass front without dirt-collecting edges Programmable LED signal bar Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

Front-right-W07RK3S-PCO1AC-POE-1 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Front-right-W07RK3S-PCO1AC-POE-1 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Interfaces-W07RK3S-PCO1AC-POE-2 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Interfaces-W07RK3S-PCO1AC-POE-2 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 23070028
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request


SPEZIFIKATIONEN
Order number: 23070028
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: S-Serie HMI
Manufacturer item number: W07RK3S-PCO1AC-PoE
mechanics: Panel Mount
dimensions width: 18,94
dimensions height: 14,54
dimensions depth: 3,61
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP22
colour: schwarz / black
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 7
aspect ratio: 16:9
resolution: 1024 x 600
brightness: 1000 cd/m²
contrast: 500:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
input: 10 Watt
HDMI: 1 x Micro HDMI
USB: 1 x USB 3.0, 1 x USB 2.0, 1 x USB OTG
serial: 1 x RS-232/422/485
Audio: 1 x 1 Watt Speaker
LAN: 1x RJ45 - 10/100/1000 Mbps
CPU Typ: Cortex
CPU Model: A72
CPU 64bit: Ja
CPU speed: 2,0 GHz
CPU cores: 4
RAM size (MB): 2048
RAM max. size (MB): 4096
RAM Number of benches: 1
RAM Typ: LPDDR3L
RAM speed: 1600
CPU class: ARM Cortex
CPU alternative option 1: A53
SSD design: eMMC
SSD max. number: 1
SSD capacity (GB): 16
RAID-System: Nein / no
CD/DVD-Writer : Nein / no
Ethernet connections: 1 x RJ-45/1 x RJ-45 LAN or optional PoE
Ethernet data transfer: 1 x Gigabit-LAN
WLAN : Nein / no
Bluetooth : Nein / no
camera: Optional 2 Megapixel
Barcode Scanner: Nein / no
RFID Reader : Optional / optional
operating system: Android 7.1
operating-system language version: deutsch / english / italian
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
