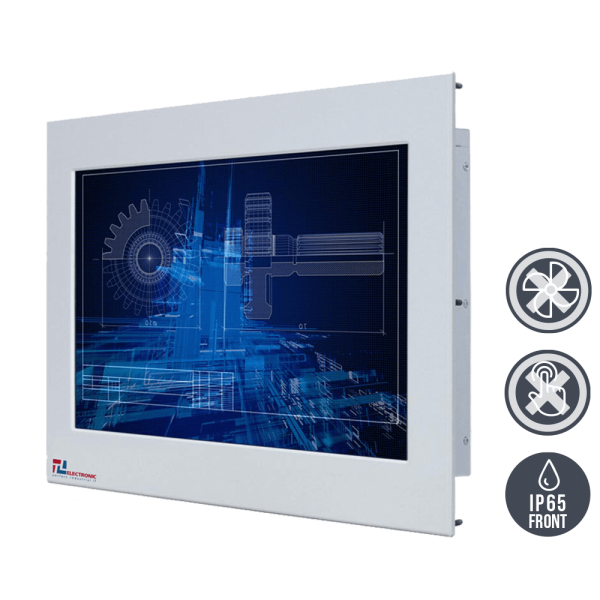

WM 22W-IB70-PMA-GS
no Touch-Screen
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
Order number: | 23220854 |
Manufacturer: | WM |
Matchcode manufacturer: | nein |
Manufacturer: | Winmate |
series name: | WM-Serie |
Manufacturer item number: | W22IB7T-OFA3 |
mechanics: | Panel Mount |
dimensions width: | 55 |
dimensions height: | 36 |
dimensions depth: | 8,8 |
Material housing: | Stahlblech / steel sheet |
Material Front : | Aluminium / aluminum |
protection front: | IP65 |
protection device: | IP20 |
colour: | RAL 7035 / light grey |
controls: | 2 Keys: Power, Reset |
VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
mounting: | Einbau von vorne / front installation |
cooling: | lüfterlos / fanless |
Display-diagonal (inch): | 21,5 |
aspect ratio: | 16:9 |
resolution: | 1920 x 1080 |
brightness: | 250 cd/m² |
contrast: | 1000:1 |
Display-Technology: | LCD, LED Backlight |
Touch-Screen or glass: | Schutzglas / protective glass |
voltage input DC: | 12 V/DC |
external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
input: | 60 Watt |
VGA: | 1 x 15-pin D-sub |
USB: | 1 x USB 3.0, 3 x USB 2.0 |
serial: | 2 x RS-232, 1 x RS232/422/485 |
Audio: | 1 x Line-in (3,5 mm), 2 x Speaker |
LAN: | 2x RJ45 - 10/100/1000 Mbps |
PS/2: | 2x Mini-DIN |
Mainboard form factor: | Mini-ITX |
chipset: | Intel System on chip |
CPU Typ: | Celeron Bay Trail-M |
CPU Model: | N2930 |
CPU 64bit: | Ja |
CPU speed: | 1,8 GHz |
CPU cores: | 4 |
CPU socket: | CPU Onboard |
RAM size (MB): | 4096 |
RAM max. size (MB): | 8192 |
RAM Number of benches: | 1 |
RAM Typ: | SO-DDR3 |
RAM speed: | 1600 |
Grafik Controller: | Intel HD Graphics Z3700 series |
Audio Controller: | Realtek ALC888 HD Codec |
safety: | TPM 1.2 |
connections SATA: | 1 |
CPU class: | Atom / Celeron |
SSD design: | 2.5" |
SSD capacity (GB): | 128 |
Ethernet connections: | 2 x RJ-45 |
Ethernet data transfer: | 2 x Gigabit-LAN |
Ethernet Controller : | Intel I210-AT |
MiniPCIe Slot WLAN/WWAN : | 1 |
Betriebssystem: | Optional |
operating-system language version: | deutsch / english / italian |
operating-system support: | Windows 7 / 8.1 / 10 IoT |
operating temperatur min.: | 0°C |
operating temperatur max.: | 50°C |
warranty: | 24 Monate / 24 months |
