WM 22W-IK70-PMA-GS
no Touch-Screen

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

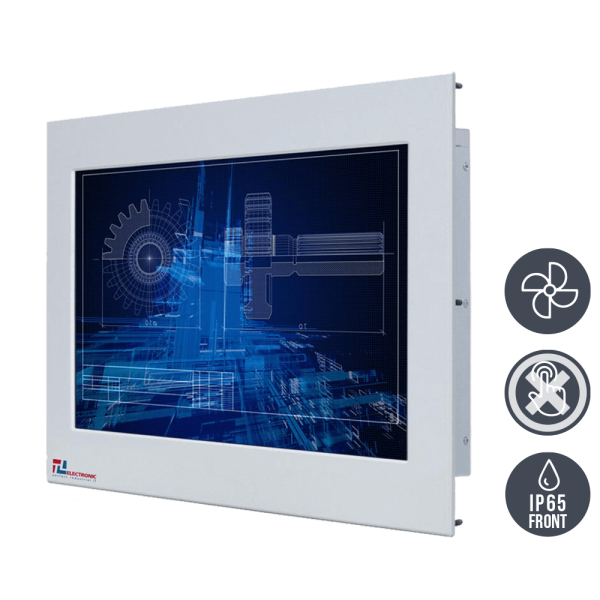

01-Industrie-Panel-PC-WM22WPMA-IP65-Einbau-oT-mL.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / ohne Touch-Screen
01-Industrie-Panel-PC-WM22WPMA-IP65-Einbau-oT-mL.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / ohne Touch-Screen

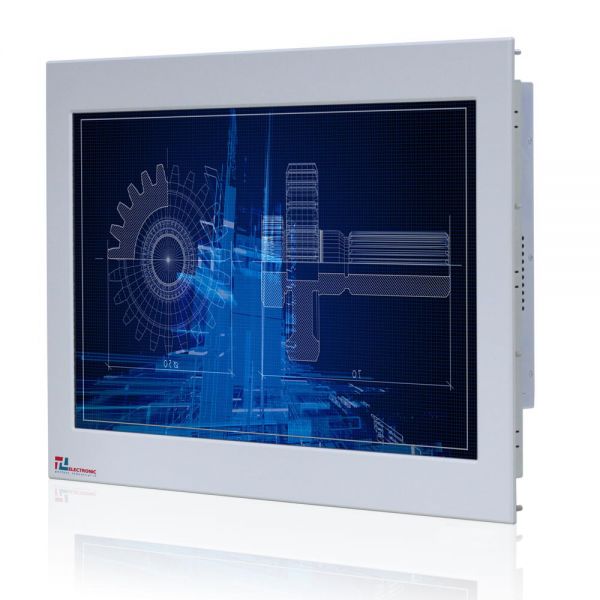

21-Einbau-Industrie-Panel-PC-W22IK7T-OFA3 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / ohne Touch-Screen
21-Einbau-Industrie-Panel-PC-W22IK7T-OFA3 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / ohne Touch-Screen

Order number: 23220862
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • Schutzglas / protective glass
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23220862
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: SlimLine-Serie
Manufacturer item number: W22IK7T-OFA3
mechanics: Panel Mount
dimensions width: 55,0
dimensions height: 36,0
dimensions depth: 8,8
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP65
protection device: IP20
colour: RAL 7035 / light grey
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: aktiv / fan cooling
Display-diagonal (inch): 22
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 250 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Schutzglas / protective glass
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
DVI: 1 x DVI-D
HDMI: 1 x HDMI (Type-A)
USB: 4 x USB 2.0, 2 x USB 3.0
serial: 3 x RS-232 (COM2/5/6)
Audio: 1 x Line-in (3,5 mm), 2 x Speaker
LAN: 2x RJ45 - 10/100/1000 Mbps
PS/2: 2x Mini-DIN
Mainboard form factor: Mini-ITX
chipset: Intel Q170
CPU Typ: Core i3
CPU Model: 7100T
CPU 64bit: Ja
CPU speed: 3,4 GHz
CPU cores: 2
CPU socket: FCLGA1151
RAM size (MB): 4096
RAM max. size (MB): 16384
RAM Number of benches: 1
RAM Typ: DDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 630
Audio Controller: Realtek ALC283 HD Codec
safety: TPM 2.0
connections SATA: 2
CPU class: Core i3 / i5 / i7
CPU alternative option 1: Core i5-7xxx
CPU alternative option 2: Core i7-7xxx
CPU alternative option 3: Core i3-7xxx
Expansion slots: 1 x PCIe-x4
HDD design: 2.5"
HDD max. number: 1
HDD connection: SATA
HDD capacity (GB): 500
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I225LM + I219LM
Betriebssystem: Windows 10 IoT Enterprise ENTRY
operating-system language version: deutsch / english / italian
operating-system support: Windows 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
