WM 15-IB70-PME-PRS
Touch-Screen for 1-Finger Operation
Industrial LCD for professional use Industrial monitor in sturdy steel sheet design Robust stainless steel front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

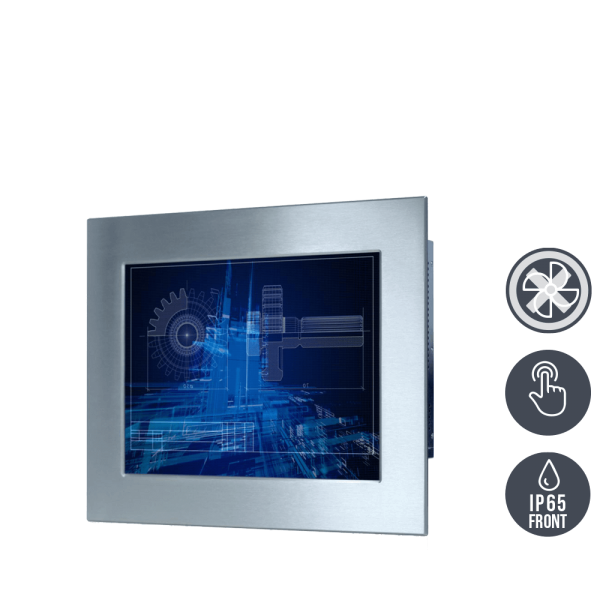

01-Industrie-Panel-PC-WM15PME-Edelstahl-IP65-Einbau-rT.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Order number:
23152101
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23152101 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | WM-Serie |
| Manufacturer item number: | R15IB7T-OFC3 |
| mechanics: | Panel Mount Edelstahl / stainless steel |
| dimensions width: | 41 |
| dimensions height: | 34 |
| dimensions depth: | 7,3 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | Edelstahl gebürstet / brushed stainless steel |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 250 cd/m² |
| contrast: | 500:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 43 Watt |
| VGA: | 1 x 15-pin D-sub |
| USB: | 1 x USB 3.0, 3 x USB 2.0 |
| serial: | 2 x RS-232, 1 x RS232/422/485 |
| Audio: | 1 x Line-in (3,5 mm), 2 x Speaker |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| PS/2: | 2x Mini-DIN |
| Mainboard form factor: | Mini-ITX |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron Bay Trail-M |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU cores: | 4 |
| CPU socket: | CPU Onboard |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3 |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| Audio Controller: | Realtek ALC886 HD Codec |
| safety: | TPM 1.2 |
| connections SATA: | 1 |
| CPU class: | Atom / Celeron |
| SSD design: | 2.5" |
| SSD capacity (GB): | 128 |
| RAID-System: | Nein / no |
| CD/DVD-Writer : | Nein / no |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I210-AT |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| Betriebssystem: | Optional |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
