WM 17-IK70-PMA-PRU
Touch-Screen for 1-Finger Operation

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

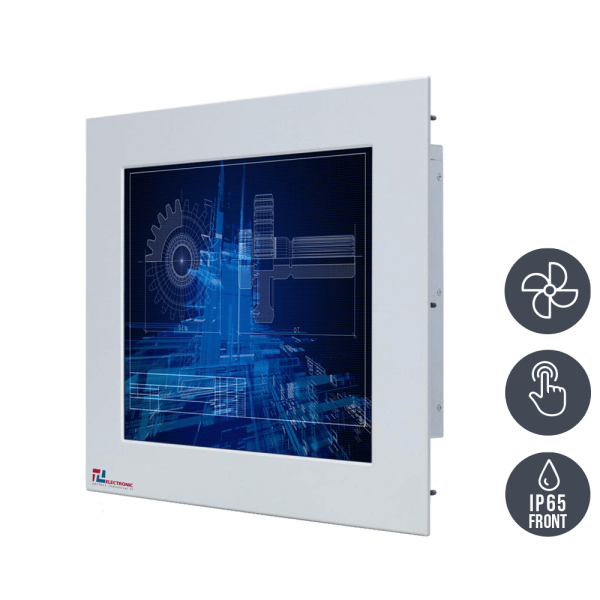

01-Industrie-Panel-PC-WM17PMA-IP65-Einbau
01-Industrie-Panel-PC-WM17PMA-IP65-Einbau
21-Front-right-R19IK7T-OFM1 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
21-Front-right-R19IK7T-OFM1 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung

Order number: 23171593
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • P-CAP / Resistiver Touch-Screen optional
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23171593
Manufacturer: WM
Matchcode manufacturer: ja
Manufacturer: Winmate
series name: SlimLine-Serie
Manufacturer item number: R17IK7T-OFM1
mechanics: Panel Mount
dimensions width: 48,3
dimensions height: 39,9
dimensions depth: 8,8
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP20
colour: RAL 7035 / light grey
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: aktiv / fan cooling
Display-diagonal (inch): 17
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 350 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 93 Watt
HDMI: 1 x HDMI (optional)
DisplayPort: 1 x DisplayPort
USB: 4 x USB 3.0
serial: 2 x RS232/422/485
Audio: Mic-In, Line-Out
LAN: 2x RJ45 - 10/100/1000 Mbps
Mainboard form factor: Mini-ITX
chipset: Intel H170
CPU Typ: Core i3
CPU Model: 7100T
CPU 64bit: Ja
CPU speed: 3,4 GHz
CPU cores: 2
CPU socket: LGA1151, H4
RAM size (MB): 4096
RAM max. size (MB): 16384
RAM Number of benches: 2
RAM Typ: SO-DDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 630
Audio Controller: Realtek ALC283 HD Codec
safety: TPM 2.0
CPU class: Core i3 / i5 / i7
CPU alternative option 1: Core i3-7xxx
CPU alternative option 2: Core i5-7xxx
CPU alternative option 3: Core i7-7xxx
Expansion slots: 1 x PCIe-x16
HDD design: 2,5"
HDD max. number: 1
HDD connection: SATA
HDD capacity (GB): 500
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 256
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I112AT + PHYI219LM
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Optional / optional
operating system: Windows 10 IoT Enterprise
operating-system language version: deutsch / english / italian
operating-system support: Windows 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
