Multi-talent with individual features, interfaces and performance – customized with standard modules

YOUR ALL-ROUNDER WITH FEATURES, INTERFACES & PERFORMANCE JUST AS YOU WISH

A compact and robust booksize IPC modularly assembled exactly for your project

Every project is different – and so are the hardware and software requirements. For more than 40 years, we have been supplying industrial IT for a wide range of industrial and semi-industrial applications.

That is why one of our main concerns is to implement the individual wishes of our customers as precisely as possible. With the SE-N108 booksize IPC, we now have another ace up our sleeve:

Modules expand the interfaces with additional COM and LAN ports


Customer-specific tailor-made with standard modules –

You receive an industrial PC that exactly meets your requirements. More LAN ports or serial interfaces are quickly implemented without any special effort.

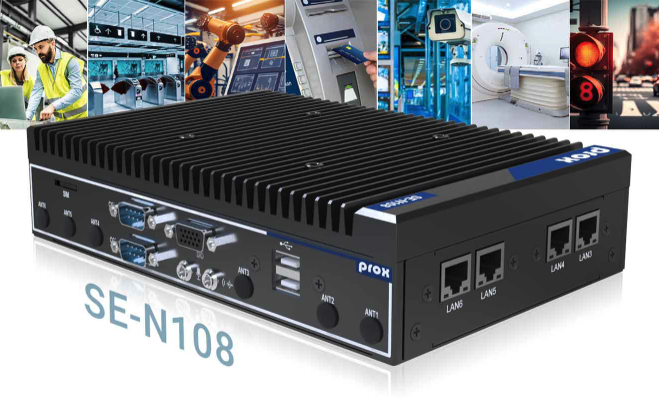

Front and rear view with all interfaces

Even in the basic configuration, you can use an extensive range of typical interfaces.

More features:

12th generation Core i CPUs and Windows 11 IoT Enterprise
Fit for the future with stable, fast applications and long-term availability
Wide-range voltage input 12~24 V
Perfect for the control cabinet with grounded 3-pin connection
Shock and vibration resistance MIL-STD-810H
… and industry-typical protection class IP20
Three simple mounting options
with wall-mount rails, VESA interface or on the DIN-rail
–20 ~ 70 °C operating temperature
thanks to large heat sink for a fail-safe fanless system
Compact and robust
215 × 143 × 50 mm small housing made of aluminum and magnesium
Discover all features now
CPU-Benchmark


Performance reserves: The 12th generation Core™ i CPUs (“Alder Lake”) from Intel’s long-term available “Embedded Program” offer plenty of processing power for all demanding and future-proof applications.
The choice is yours: Core i3, i5, i7 or Celeron?

Specifications SE-N108 Booksize IPC
CPU:  Core™ i3-1215UE (6 × 4.4 GHz)
Core™ i5-1245UE (10 × 4.4 GHz)
Core™ i7-1265UE (10 × 4.7 GHz)
Celeron® 7305E (5 × 1.0 GHz)
OS Support:  Windows 11 IoT Enterprise, Ubuntu
Memory:  8–32 GB DDR5
Storage:  256 GB M.2 SSD,
optional 2.5" S-ATA 3.0 SSD
Interfaces:  4 × USB 3.2, 2 × USB 2.0, optional 4 × USB 2.0;
2 × COM (RS232/422/485), optional 6 × COM;
2 × LAN (2.5 GbE), optional 6 × LAN;
1 × Digital-I/O (4in/4out);
Audio-I/O, HDMI, DiplayPort
Communication:  WLAN and 4G/5G optional,
up to 6 external antennas for more range
Power:  12~24 V wide range input
Material:  Aluminium, Magnesium
Mounting:  Wall-mount, VESA 75×75 mm, DIN-Rail
Protection:  IP20
Shock/Vibration:  acc. MIL-STD-810H
Operating temp.:  -20 ~ 70 °C
