That's engineering excellence: 24/7 high performance and connectivity in book size format – NEW

Our partner Protech has once again impressively demonstrated how much engineering expertise goes into compact industrial hardware.

The powerful performance of the new Intel Core TE CPUs has been successfully integrated into a fanless, extremely compact system – reliable, maintenance-free, and optimized for continuous operation in industrial environments.

Despite its small dimensions, the IPC offers an exceptional range of connections: up to 8 × LAN, up to 10 × COM, and flexible wireless options. Protech thus delivers a powerful system for applications that require high performance, stable connectivity, and flexibility in terms of interfaces.

Modules expand the interfaces with additional COM and LAN ports


Customized to your requirements – with standard modules.

You receive an industrial PC that precisely meets your specifications. Additional LAN ports or serial interfaces can be quickly implemented without significant effort.

This gives you a compact, multi-talented communication device.

Front view with all interfaces

Rear view with all interfaces

Even with the basic configuration, you can use a wide range of typical interfaces such as 4 LAN, 6 COM, and 7 USB ports.

Discover Booksize IPC now

The Highlight – the new CPUs

CPU-Benchmark i3 i5 i7 i9


Performance reserves: The 12th generation Core™ i CPUs (“Alder Lake”) from Intel’s long-term “Embedded Program” offer ample performance for demanding and future-proof applications.
The choice is yours:
Intel Core i3, i5, i7 or i9?

The solid black heat sink ensures safe operation under continuous load.

Good to know: These high-performance CPUs generate 35 watts of heat. In general, more economical models with 15 watts are typical for embedded and book-size IPCs. That’s why a clever fanless cooling concept with a solid heat sink ensures safe and reliable operation, even during continuous use.

CPU-Benchmark i5 vs. Vorgänger

In comparison: The i5 is nearly 3 × as powerful as a common predecessor CPU in the industrial sector.


CPU-Benchmark i5 TE vs. UE

Almost twice as powerful as the economical 15-watt version, it is optimized for continuous load.

The TE is designed for continuous performance under higher thermal budgets. It can maintain its performance under full load for longer, offers more reserves for parallel processes, and is optimized for industrial, stationary applications where energy consumption is secondary to stable computing power.

Additional features:

Long-term availability
of the industrial PC and CPUs from Intel’s “Embedded Program”
24/7 operation
All components are designed for industrial applications in continuous operation
–20 ~ 70 °C operating temperature
thanks to extra-large heat sink for a fail-safe fanless system
Wide-range voltage input 12~24 V
perfect for control cabinets with 3-pin connection
Compact und robust
260 × 200 × 86 mm small book-size aluminum housing
Easy mounting option
with wall-mount brackets
Discover all features now

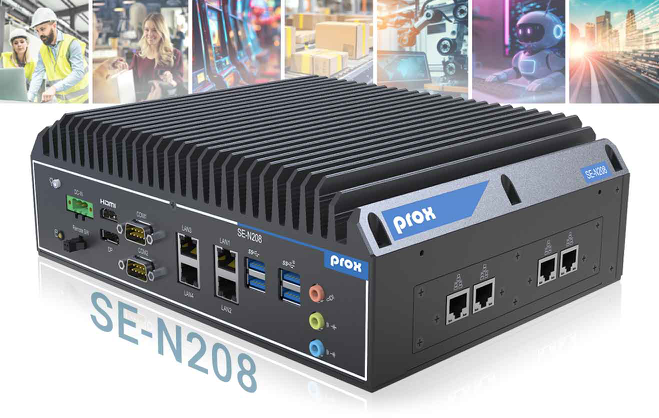

Specifications SE-N208 Booksize IPC
CPU:  Core™ i3-12100TE (4 core, 4.0 GHz)
Core™ i5-12500TE (6 core, 4.3 GHz)
Core™ i7-12700TE (12 core, 4.6 GHz)
Core™ i9-12900TE (16 core, 4.8 GHz)
OS Support:  Windows 11 IoT Enterprise, Ubuntu
Memory:  8–64 GB DDR5
Storage:  256 GB M.2 SSD,
optional 2.5" S-ATA 3.0 SSD
Interfaces:  6 × USB 3.2, 1 × USB-C,
6 × COM (3 × RS232/422/485),
4 × LAN (2.5 GbE), PoE/PXE/WOL support,
1 × Digital I/O (8in/8out),
2 × DiplayPort, HDMI, Audio I/O
Expansion modules (optional):
4 × COM extra,
4 × LAN extra
Communication:  WLAN and 4G/5G optional,
up to 4 external antennas for increased range
Power:  12~24 V (3-pin) wide-range input
Material:  Aluminium
Dimensions:  260 × 200 × 86 mm
Protection:  IP20
Operating temp.:  -20 ~ 70 °C
