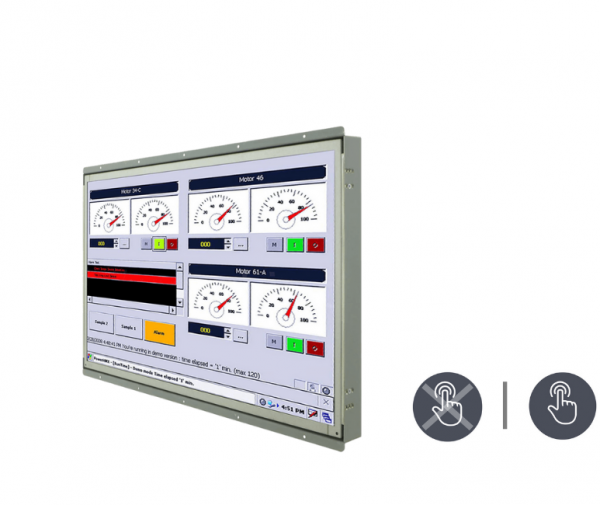

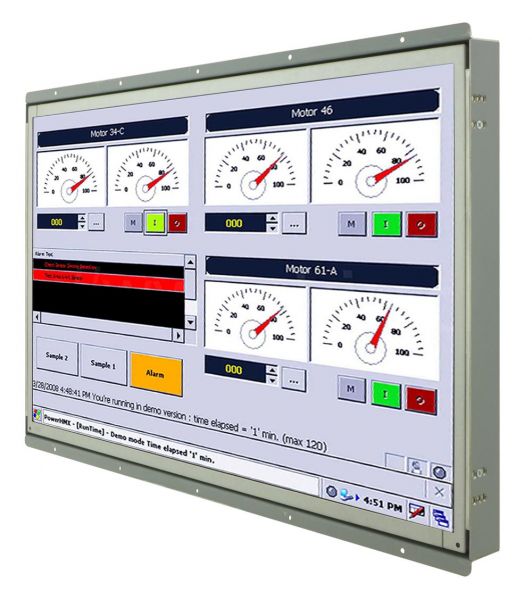

WM 22W-VDH-OF-PRS
Touch-Screen for 1-Finger Operation

Industrial LCD for professional use Industrial monitor in sturdy open-frame steel sheet design Rear cover protected against contact (cage chassis) Designed for industrial applications in continuous operation Long-term availability

21-Einbau-Industrie-LCD-W22L100-OFA3_mT.png / TL Produkt-Welten / Industriemonitor / Open Frame (Einbau von hinten) / Touch-Screen für 1-Finger-Bedienung
21-Einbau-Industrie-LCD-W22L100-OFA3_mT.png / TL Produkt-Welten / Industriemonitor / Open Frame (Einbau von hinten) / Touch-Screen für 1-Finger-Bedienung
Order number: 52200794
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Montage als Openframe oder mit Frontplatte
  • Robuste Stahlblech-Mechanik
  • Resistiver Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 52200794
Manufacturer: WM
Manufacturer: Winmate
series name: WM-Serie
Manufacturer item number: W22L100-OFA3
mechanics: Open Frame
dimensions width: 50,4
dimensions height: 31,8
dimensions depth: 6,0
Material housing: Stahlblech / steel sheet
protection device: IP20
controls: 5 Keys: -, +, Power, Esc, Enter
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von hinten / back installation
Display-diagonal (inch): 21,5
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 250 cd/m²
contrast: 3000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: RS-232
Manufacturer controller: Premier
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
DVI: 1 x DVI-D
HDMI: 1 x HDMI
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
