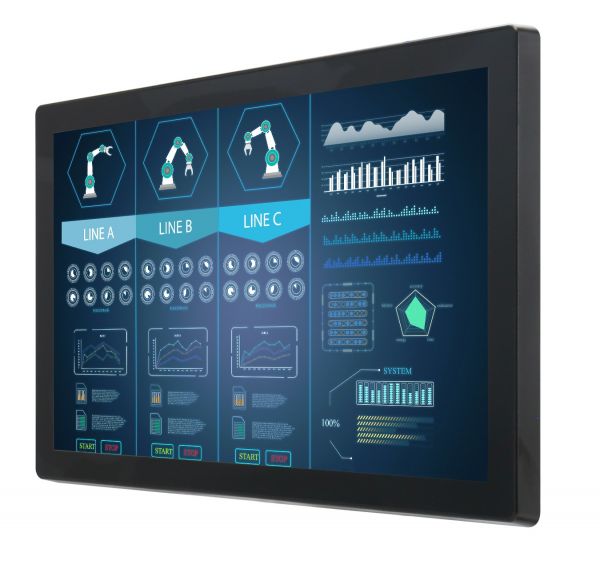

W24L100-GCA2
Multitouch-Screen, Projected-Capacitive (PCAP)

Rugged Display for stationary and vehicle-mounted use Industrial Display in sturdy steel sheet housing Robust plastic front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

01-Chassis-Industriemonitor-W24L100-GCA2.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Chassis-Industriemonitor-W24L100-GCA2.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 52400233
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • robustes Kunststioff/Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 52400233
Manufacturer: WM
Manufacturer: Winmate
series name: GC-Serie
Manufacturer item number: W24L100-GCA2
dimensions width: 58,8
dimensions height: 35,8
dimensions depth: 5,5
Material housing: Stahlblech / steel sheet
Material Front : Kunststoff / plastic
protection front: IP65
colour: schwarz / black
controls: 5 Keys: -, +, Power, Esc, Enter
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
Display-diagonal (inch): 23,8
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 250 cd/m²
contrast: 3000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
