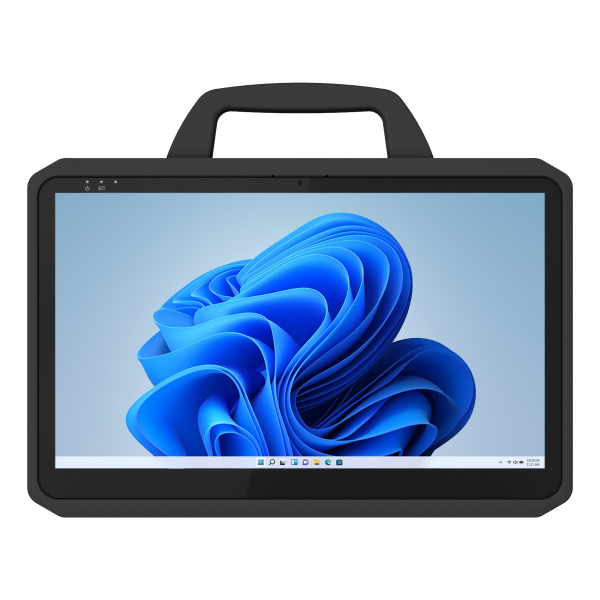

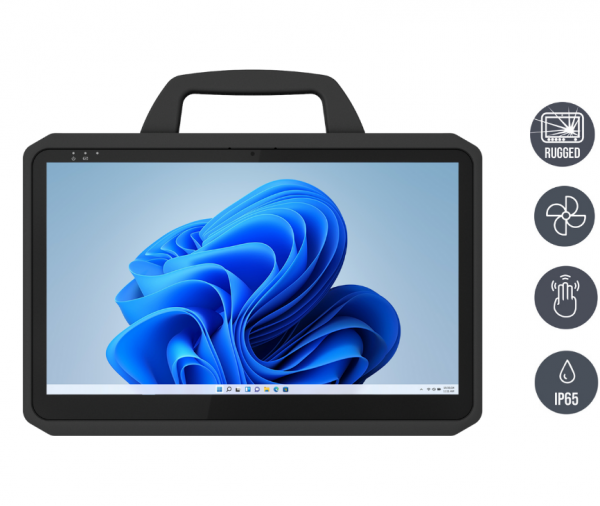

M156AD
Industrial Automation,
Tablet PC for professional use Ruggedized Tablet in sturdy magnesium alloy housing with all-around elastomeric rubber Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810H) Multi-touch (PCAP) with Glove / Rain / Stylus modes Integrated multi-functional stand Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability
01-Rugged-Tablet-PC-M156AD.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Rugged-Tablet-PC-M156AD.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Rugged-Tablet-PC-M156AD.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
Order number:
25150007
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 25150007 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Rugged Industrial Tablet PC |
| Manufacturer item number: | M156AD |
| mechanics: | Rugged Tablet PC |
| dimensions width: | 38,77 |
| dimensions height: | 25,61 |
| dimensions depth: | 2,75 |
| weight: | 2,8 |
| protection device: | IP65 |
| colour: | Schwarz / black |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 15,6 |
| resolution: | 1920 x 1080 |
| brightness: | 800 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/ Handschuh/ finger/ glove |
| CPU Typ: | Core i5 |
| CPU Model: | 1235U |
| CPU speed: | 3,3 GHz |
| CPU cores: | 10 |
| RAM size (MB): | 8192 |
| RAM max. Größe (MB: | 65536 |
| RAM Typ: | SO-DDR5 |
| SSD design: | M.2 |
| SSD capacity: | 256 |
| SSD number: | 1 |
| SSD number max.: | 2 |
| safety: | TPM 2.0 |
| WLAN: | Optional / optional |
| Bluetooth: | Optional / optional |
| WWAN: | Optional / optional |
| Ethernet_connections: | 2x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| Camera rear: | Ja / yes |
| Camera rear resolution: | 8MP |
| Video: | 2x HDMI 4K (optional) |
| USB: | 3x USB 3.0 (Type A), 1x USB 3.0 (Type C) |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Card Slot: | 1x Micro SDXC Slot |
| Audio: | 1x Audio Combo jack 3.5mm |
| operating system: | Windows 10 IoT Enterprise |
| operating temperatur min.: | -20°C |
| operating temperatur max.: | 60°C |
| Shock: | MIL-STD-810H Method 516.8 Procedure I |
| Vibration: | MIL-STD-810H Method 514.8 Procedure I |
| Drop: | MIL-STD-810H Method 516.8, 3 ft |
| voltage input DC: | 19 V/DC |
| external power supply: | 19 V/DC, 100 - 240 V/AC, DC plug |
| battery: | 2x 11.55V, 3220mAh Li-Ion Battery (3S1P) |
| battery Hot-Swap: | Ja / yes |
