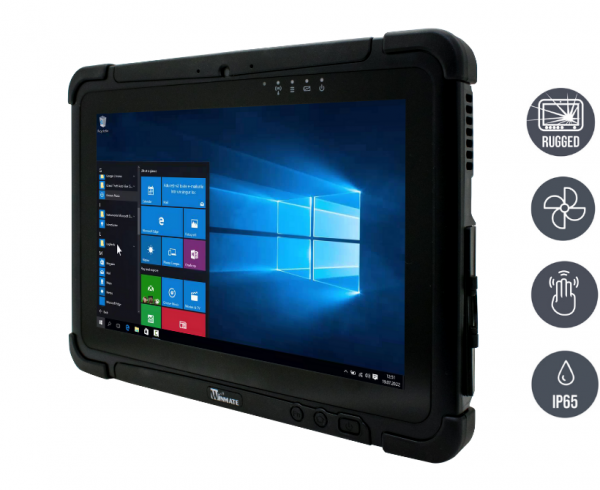

M101AD
Industrial Automation, Rugged Industrial Tablets
Tablet PC for professional use Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810H) Multi-touch (PCAP) with Glove / Rain / Stylus modes Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability
01-Rugged-Tablet-PC-M101AD-v1.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Rugged-Tablet-PC-M101AD.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Rugged-Tablet-PC-M101AD.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
Order number:
25100099
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 25100099 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Rugged Industrial Tablet PC |
| Manufacturer item number: | M101AD |
| mechanics: | Rugged Tablet PC |
| dimensions width: | 27,15 |
| dimensions height: | 19,82 |
| dimensions depth: | 2,33 |
| weight: | 1,2 |
| protection device: | IP65 |
| colour: | Schwarz / black |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:10 |
| resolution: | 1920 x 1200 |
| brightness: | 800 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/ Handschuh/ finger/ glove |
| CPU Typ: | Core i5 |
| CPU Model: | 1235U |
| CPU speed: | 3,3 GHz |
| CPU cores: | 10 |
| RAM size (MB): | 8192 |
| RAM max. Größe (MB: | 32768 |
| RAM Typ: | SDRAM-DDR5 |
| SSD design: | M.2 |
| SSD capacity: | 256 |
| SSD number: | 1 |
| safety: | TPM 2.0 und Kensington Lock |
| WLAN: | Ja / yes |
| Bluetooth: | Ja / yes |
| WWAN: | Optional / optional |
| Ethernet_connections: | 1x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| Camera rear: | Ja / yes |
| Camera rear resolution: | 8MP |
| Barcode: | Optional / optional |
| USB: | 1x USB 3.0 (Type A), 1x USB 3.0 (Type C) |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| Card Slot: | 1x Micro SDXC Slot, 1x Nano SIM Slot |
| Audio: | 1x Audio Combo jack 3.5mm |
| Power: | 1x 19 V/DC, DC plug |
| Docking connector: | 1x 19-pin Docking Connector |
| controls: | 6 Keys: Power, 5x Function |
| operating system: | Windows 10 IoT Enterprise |
| operating temperatur min.: | -20°C |
| operating temperatur max.: | 60°C |
| Shock: | MIL-STD-810H Method 516.8 Procedure I |
| Vibration: | MIL-STD-810H Method 514.8 Procedure I |
| Drop: | MIL-STD-810H Method 516.8, 4 ft |
| voltage input DC: | 19 V/DC |
| external power supply: | 19 V/DC, 100 - 240 V/AC, DC plug |
| battery: | 11.55V 4558 mAh (typ.) Battery (3S2P) |
| battery Hot-Swap: | Ja / yes |
