Modular panel with interchangeable display and box modules. Exactly according to your needs. There has never been so much flexibility and I/O expandability.
|
|
|
Modular panel with interchangeable display and box modules.
Exactly according to your needs. There has never been so much flexibility and I/O expandability.
|
|
|
07.09.2022,

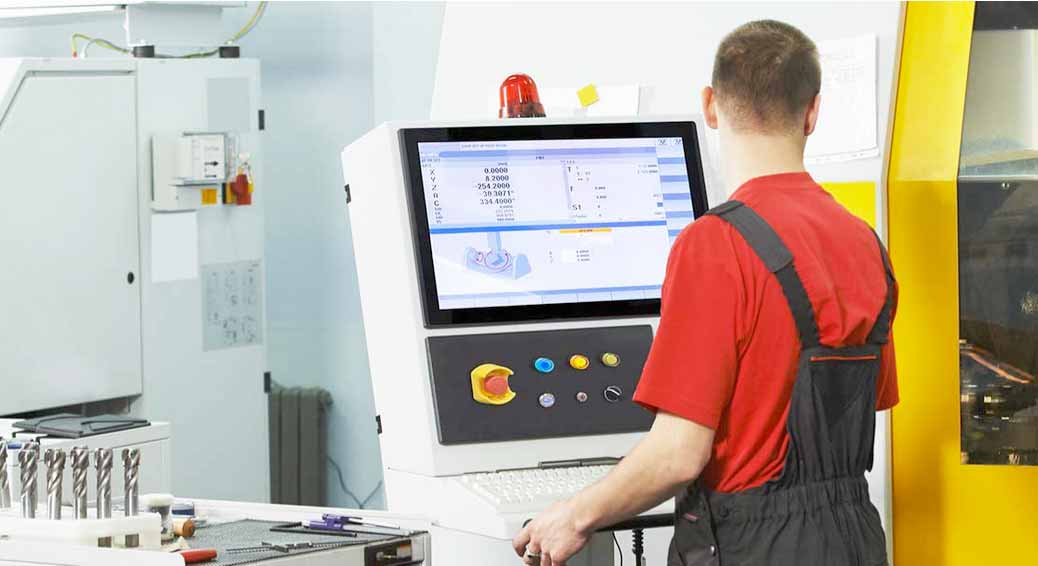

Many factory automation processes are improved through the use of CNC control solutions, i.e. the integration of embedded computers and controllers. Manufacturing operations need to be monitored in real time and resources allocated responsively. All-in-one automation panels often lack the flexibility to meet these requirements.

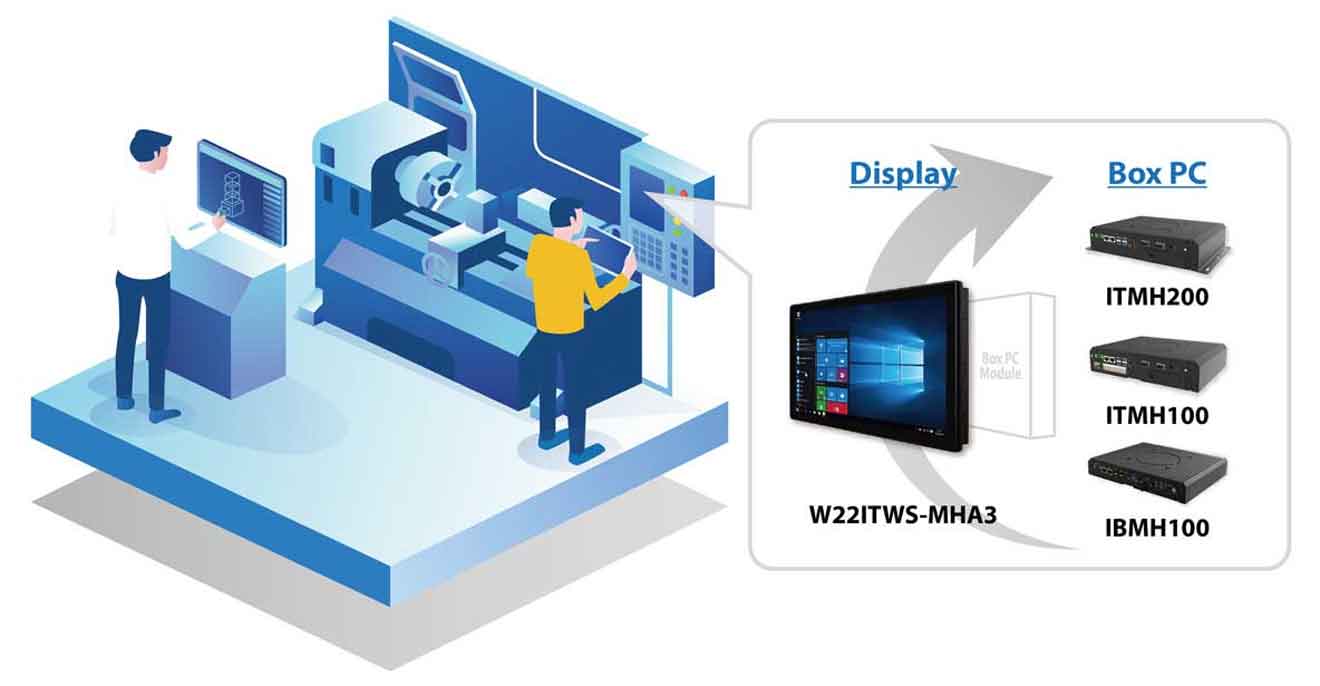

That is why we have developed the modular M-series for panel PC solutions with our partner Winmate. It enables the individual combination of the Computing Box modules with the display modules. In this way, efficiency, precision and reliability are achieved in the visualisation of smart factories with precise CNC touch controllers.
Below we compare the most important key data of three combinable Box PCs.
And of course our experts will advise you in detail at any time and present you with individual options.
|
|
Learn more now
|
The ideal combination:
HMI Panel PC + M-Series Box PC
|
Highly flexible modular HMI panel
The integrable HMI system solution has a simple and intuitive user interface and highly expandable functions that create an automated factory control system with a flexible production structure.
|
|

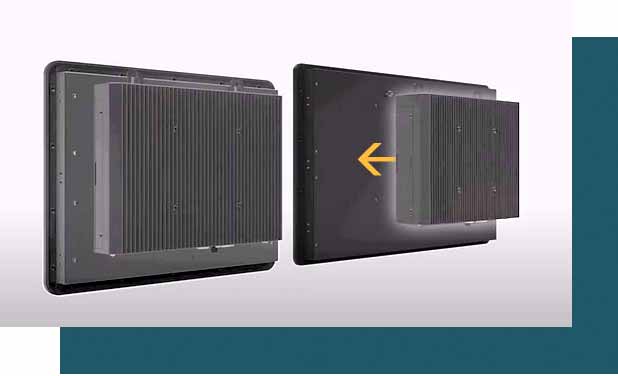

The modular panel offers interchangeable display and box modules. The interchangeable design facilitates system maintenance for replacement and upgrades. Thanks to the flexible touch and computer functions, the modular panel PCs can be used as a control panel, industrial monitor, industrial thin client or web terminal for a wide range of applications.
|
Accurate and precise PCAP touch panels
The modular panel is equipped with projected-capacitive PCAP touch technology that supports simultaneous touch performance for demanding PC-based visualisation tasks.
|
|
You can also expect excellent image sharpness and light transmission, as well as stable, drift-free operation. Available in a wide range of sizes, touch technologies and brightness, the Panel PC provides the interactive capabilities needed for industrial automation applications.
|

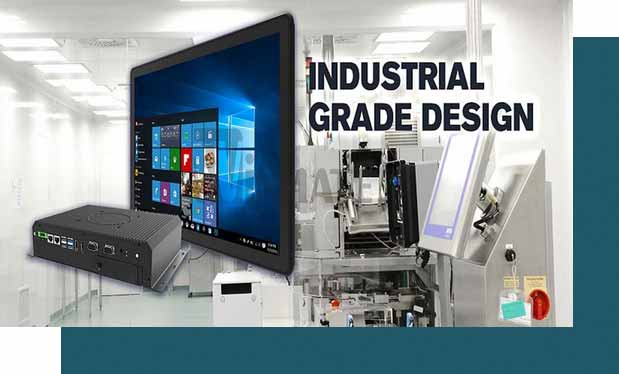

Energy-efficient design with numerous I/O interfaces
The M-Series Panel PCs feature an aluminium housing with anti-corrosion treatment and a fanless design that ensures excellent energy efficiency, quiet operation and longer life.
|
|
The flat design makes the touch screen easy to clean. The front panel is water and dust protected to IP65, while the compact and slim housing is suitable for use in humid and dusty environments.
The M-Series modular panel PCs support a wide range of isolated power supplies. The embedded systems have extensive I/O interfaces for connection to a wide range of devices and network connections for internet access and file transfer.
|
|
Learn more now
|
Three combinable Box PCs in comparison
|
|
|
|
ITMH200
|
ITMH100
|
IBMH100
|
|
CPU:
|
Core™ i5
|
Core™ i5
|
Atom®
|
|
Fanless:
|
X
|
X
|
X
|
|
RAM (GB):
|
4–32
|
4–32
|
4–8
|
|
SSD M.2:
|
128–512
|
128–512
|
—
|
|
SSD mSATA:
|
—
|
—
|
128
|
|
SSD 2.5":
|
2 ×
256–512
|
2 ×
256–512
|
1 ×
128–512
|
|
Removable:
|
X
|
X
|
—
|
|
PCIe Slot:
|
—
|
1
|
—
|
|
WLAN / BT:
|
optional
|
optional
|
optional
|
|
USB 3.2 / 2.0:
|
4 / —
|
4 / —
|
— / 4
|
|
COM:
|
2
|
2
|
1
|
|
Ethernet:
|
2
|
2
|
2
|
|
Video:
|
HDMI + DP
|
HDMI + DP
|
HDMI + VGA
|
|
Size (mm):
|
317×207×62
|
276×207×60
|
276×207×45
|
|
OS:
|
Windows 10 IoT Enterprise
|
|
|
|
|
Win. 7
Embedded
|
|
|
|
|
Linux
Ubuntu
|
|
|
|
|
|
| • |
