Robust and elegant: multitouch panel PC with IP65 built-in front. Available in 1-3 business days.
|
|
|
Robust & elegant: Multitouch Panel PC with IP65 built-in front
Available in 1-3 business days
|
|
|
15.11.2022,
also in the industrial sector, operating concepts with multi-touch are justifiably becoming more and more popular.
Realize modern multi-touch applications in industrial environments: The IP65-protected and 8 mm thick built-in front made of anodized aluminum with a flat surface without dirt edges not only looks extremely appealing, but also enables a wide range of application scenarios.
Thus, the robust devices of the MTU series offer a reliable basis for future-proof operation and monitoring. The workmanship, the look and feel, and the features are beyond reproach:
|
|

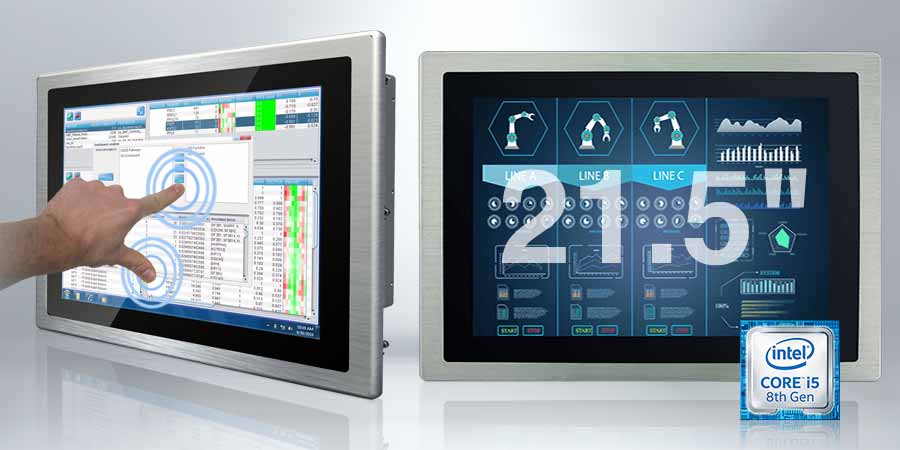

Discover 21.5" Panel PC
|

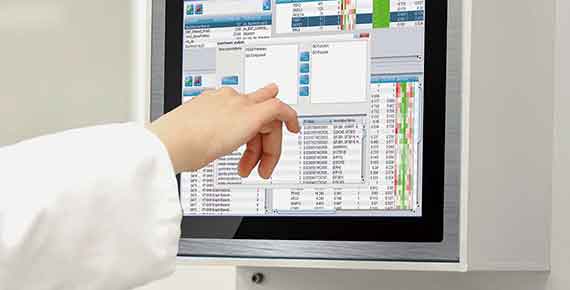

The industrial panel PC is equipped with a capacitive multi-touch for convenient control of applications with gesture and multi-finger operation.

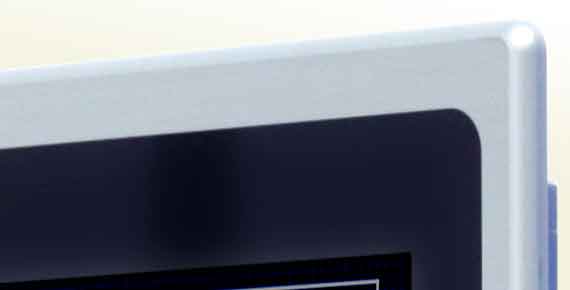

The elegant 8 mm thick aluminum front for practical panel mount installation has a flat surface without dirty edges - ideal for industrial applications.

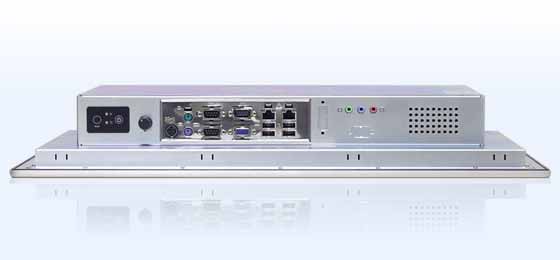

The very robust housing made of sheet steel has a high-quality finish and allows access to the interfaces and operating elements from below.
High performance: Intel’s 8th generation Core i5 mobile CPU (Whiskey Lake) with 4 cores, up to 3.9 GHz and energy-saving 14nm architecture (only 15 watts TDP).

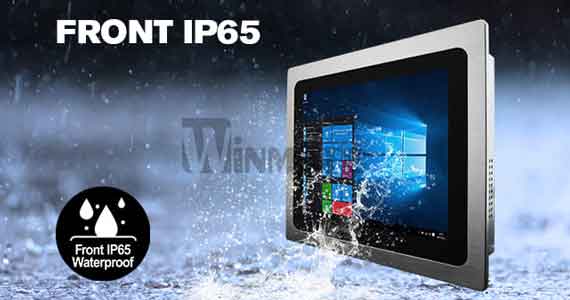

Protection class IP65 explained: The 6 stands for protection against dust ingress. The 5 stands for protection against water jets from any angle. The protection applies on the front side.

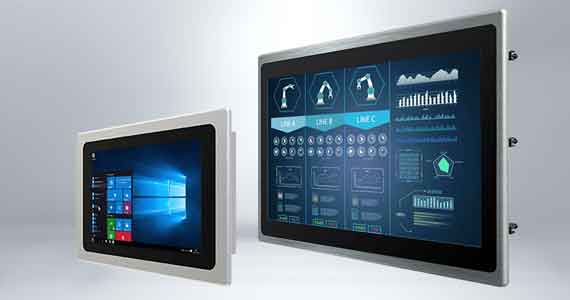

Choose from the MTU series besides the 21.5"-panel PC also other diagonals from 7" to 24" according to your application or installation requirements.
|
|
Discover 21.5" Panel PC
|
|
Specifications WM 22W-IW32-PMA-MTU
|
|
Display:
|
21.5" / 1920×1080 / 3000:1 contrast
|
|
Touch:
|
projected-capacitive multi-touch
|
|
CPU:
|
Intel® Core™ i5-8265U (fanless)
|
|
RAM:
|
8 GB DDR4 (max. 32 GB)
|
|
Storage:
|
256 GB M.2 SSD (max. 4 TB)
|
|
Interfaces:
|
2 × USB 3.2, 2 × COM, 2 × RJ45, HDMI optional
|
|
WLAN:
|
optional
|
|
OS support:
|
Windows 10 IoT Enterprise,
Linux Ubuntu 20.04
|
|
Power:
|
12 VDC
|
|
Mounting:
|
Panelmount installation from front side
|
|
Protection:
|
IP65 front side against dust and water
|
|
|
|
| • |
