PT 17-1092-PMA-PRU
Touch-Screen for 1-Finger Operation, Panel-PC
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts

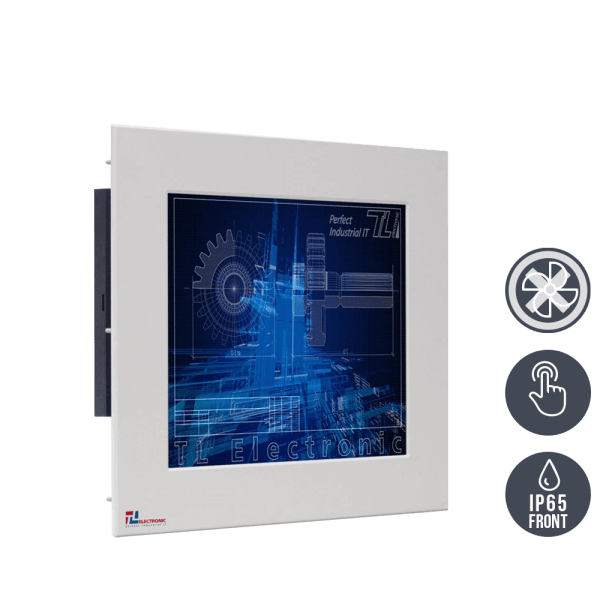

11-Einbau-Industrie-Panel-PC-SlimLine-1082-PMA.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Order number:
26170016
gross price: €1,898.05
€1,595.00 *
gross price: €1,898.05
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 26170016 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| mechanics: | Panel Mount |
| dimensions width: | 48,3 |
| dimensions height: | 39,9 |
| dimensions depth: | 18,5 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 17,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 380 cd/m² |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| DVI: | 1 x DVI |
| HDMI: | 1 x HDMI 1.4 |
| USB: | 4 x USB 3.0 |
| serial: | 4 x RS-232 |
| Audio: | Line-Out, Line-In, Mic in |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| chipset: | Intel Q170 |
| CPU Typ: | Core i5 |
| CPU Model: | 6500TE |
| CPU 64bit: | Ja |
| CPU speed: | 2,3 GHz |
| CPU cores: | 4 |
| CPU socket: | 1151 |
| RAM size (MB): | 8192 |
| RAM Number of benches: | 2 |
| RAM Typ: | SO-DDR4 |
| Grafik Controller: | Graphics in CPU |
| Audio Controller: | on board |
| Expansion slots: | 2 x PCIe-x1 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel PHY 219LM + 210AT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
