CL2501 - PQ370 - 2
7 Slots (ATX Mainboard)
19-inch Industrial PC for professional use Industrial computer in sturdy steel sheet housing Aluminium front with lockable door Mainboard version (ATX) 7 x expansion slot (low profile) 2 x 80 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Made in Germany Long-term availability

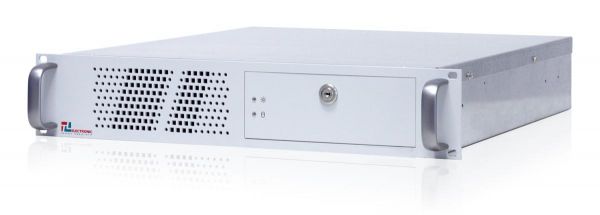

01-19-Zoll-Rack-Industrie-PC-CL2501 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
04-19-Zoll-Industrie-PC-ATX-Mainboard-CL2501 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
02-19-Zoll-Rack-Industriecomputer-Front-CL2501 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
03-19-Zoll-Rack-Industriecomputer-Front2-CL2501 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
Order number:
11200200
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 11200200 |
| Manufacturer: | TL |
| Matchcode manufacturer: | nein |
| Manufacturer: | TL Electronic |
| series name: | ClassicLine |
| mechanics: | 19" Rack Mount |
| dimensions width: | 48,3 |
| dimensions height: | 8,8 |
| dimensions depth: | 49 |
| weight: | 12 |
| Material housing: | Aluminium und Stahlblech / aluminium and |
| Material Front : | Aluminium / aluminum |
| protection front: | IP54 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | Nein / no |
| wall mounting: | Nein / no |
| cooling: | aktiv / fan cooling |
| DIN-Rail: | Nein / no |
| Bauhöhe: | 2HE |
| Mainboard form factor: | ATX |
| chipset: | Intel Q370 |
| CPU Typ : | Core i3 |
| CPU Model : | 9100E |
| CPU 64bit : | Ja |
| CPU speed: | 3,10 GHz |
| CPU cores: | 4 |
| CPU socket: | LGA1151, H4 |
| CPU alternative option 1: | Core i5-9500E |
| CPU alternative option 2: | Core i7-9700E |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 65536 |
| RAM Number of benches: | 4 |
| RAM Typ : | DDR4 |
| RAM speed: | 2400 |
| PCI Express x16 : | 1 |
| PCI Express x4 : | 3 |
| PCI Express x1 : | 1 |
| PCI : | 2 |
| Grafik Controller: | Intel HD Graphics 630 |
| Ethernet Controller: | Intel I112AT + PHYI219LM |
| Audio Controller: | Realtek ALC888S HD Codec |
| connections SATA: | 6 |
| USB internal connections: | 4x USB 2.0, 2x USB 3.0 |
| Connections Serial internal: | 6x RS-232/422/485 |
| Mini-PCIe-slot: | 1 |
| HDD design: | 3.5" |
| HDD max. number: | 4 |
| HDD connection: | SATA 3.0 |
| HDD capacity (GB): | 500 |
| MiniPCIe Slot SSD : | 1 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| RAID-System : | Ja / yes |
| alternate Caddies: | Optional / optional |
| CD/DVD-Writer : | Ja / yes |
| USB : | 2 x USB 2.0 |
| controls: | Power On/Off, Kontroll-LEDs |
| Display : | 2x DisplayPort, 1x VGA, 1x eDP |
| USB : | 4 x USB 3.1, 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| serial: | 2 x RS-232/422/485 |
| PS/2: | 2x Mini-DIN |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 400 Watt ATX, PS/2, intern |
| operating-system support: | Windows 10 IoT Enterprise, Linux |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "CL2501 - PQ370 - 2"
Verfügbare Downloads:
- CE Konformitätserklärung DoC IPC CL2501_20122020
- CE_Industrie-PC CL2501 Gebrauchsanleitung 20220404
- CE_Industrial PC CL2501 Istruzioni per l'uso _italiano_ 20220404
- CE_Industrial PC CL2501 Instruction manual (english) 20220404
- CL250x_Filtermattentausch_Anhang A_V1
- Drawing Industrie-PC CL2501_30052022
