EL1083
Embedded PC

Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability

02-Front-Interfaces-EL1083 / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Front-Interfaces-EL1083 / TL Produkt-Welten / Industrie-PC / Embedded-PC

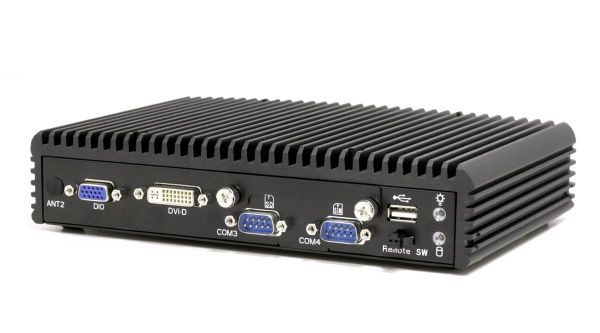

01-Front-EL1083 / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Front-EL1083 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-Interfaces-EL1083 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-Interfaces-EL1083 / TL Produkt-Welten / Industrie-PC / Embedded-PC

Order number: 15000486
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • Atom™ bis Core™-i Embedded Systeme
  • bis zu 4 Erweiterungs-Steckplätze
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15000486
Manufacturer: PT
Matchcode manufacturer: nein
Manufacturer: Protech
series name: EmbeddedLine
Manufacturer item number: SE-8124
mechanics: Embedded-PC
dimensions width: 21,7
dimensions height: 4,5
dimensions depth: 14,8
weight: 2,0
Material housing: Aluminium und Stahlblech / aluminium and steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP20
protection device: IP20
colour: schwarz / black
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: Nein / no
wall mounting: Optional / optional
DIN-Rail: Optional / optional
cooling: lüfterlos / fanless
chipset: Intel System on chip
CPU Typ : Celeron Bay Trail-M
CPU Model : J1900
CPU 64bit : Ja
CPU speed: 2000
CPU cores: 4
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ : SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
Ethernet Controller: Intel I210IT
Audio Controller: Realtek ALC888S HD Codec
connections SATA: 1
Mini-PCIe-slot: 2
HDD design: 2.5"
HDD max. number: 1
HDD connection: SATA
HDD capacity (GB): 500
MiniPCIe Slot SSD : 1
RAID-System : Nein / no
alternate Caddies: Nein / no
CD/DVD-Writer : Nein / no
Display: 1x DVI-D
USB : 1 x USB 2.0
Seriell : 2 x RS-232
SD Card Slot : Ja / yes
Digitale I/O : 1 x 4in / 4out
controls: Kontroll-LEDs
Display : 1x DVI-I
USB : 1 x USB 3.0, 1 x USB 2.0
LAN : 2x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Line-In, Mic in
serial: 2 x RS232/422/485
controls: Power On/Off, Reset
voltage input DC: 9-36 V/DC
power adapter: Optional externes Netzteil 100 - 240 V/AC
WLAN: Optional / optional
GSM : Optional / optional
GPS : Optional / optional
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: 0°C
operating temperatur min.: 45°C
warranty: 24 Monate / 24 months
