EL1096
Embedded PC

Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability

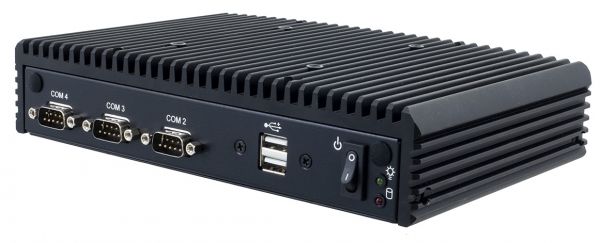

05-Industrie-Embedded-PC-EL1096-Front-right
05-Industrie-Embedded-PC-EL1096-Front-right
02-Rear-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Rear-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Front-left-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Front-left-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
08-Rear-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
08-Rear-EL1096 / TL Produkt-Welten / Industrie-PC / Embedded-PC
09-Industrie-Embeddet-PC-EL1096-Front
09-Industrie-Embeddet-PC-EL1096-Front
Order number: 15000508
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • Atom™ bis Core™-i Embedded Systeme
  • bis zu 4 Erweiterungs-Steckplätze
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15000508
Manufacturer: PT
Matchcode manufacturer: nein
Manufacturer: Protech
series name: EmbeddedLine
Manufacturer item number: BS-E099
mechanics: Embedded-PC
dimensions width: 21,8
dimensions height: 4,5
dimensions depth: 14,8
weight: 1,8
Material housing: Aluminium und Stahlblech / aluminium and
Material Front : Stahlblech / steel sheet
protection front: IP20
protection device: IP20
colour: schwarz / black
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: Nein / no
wall mounting: Optional / optional
DIN-Rail: Optional / optional
cooling: lüfterlos / fanless
chipset: Intel System on chip
CPU Typ : Core i5
CPU Model : 7300U
CPU 64bit : Ja
CPU speed: 2600
CPU cores: 2
CPU socket: FCBGA1356
CPU alternative option 1: Core i3-7100U
RAM size (MB): 4096
RAM max. size (MB): 16384
RAM Number of benches: 1
RAM Typ : DDR4
Grafik Controller: Intel HD Graphics 620
connections SATA: 1
Mini-PCIe-slot: 1
HDD design: 2.5"
HDD max. number: 1
HDD connection: SATA 3.0
HDD capacity (GB): 500
MiniPCIe Slot SSD : 1
USB : 2 x USB 2.0
Seriell : 1 x RS 232/422/485, 2 x RS232 (optional)
controls: Power On/Off
Display : 1 x DisplayPort, 1 x HDMI
USB : 4 x USB 3.1, 2 x USB 2.0
LAN : 2x RJ45 - 10/100/1000 Mbps
Audio : Line-Out
serial: 1 x RS-232
voltage input DC: 12 V/DC
power adapter: 100 - 240 V/AC, 4-pin, extern
WLAN: Optional / optional
operating-system support: Windows 10 / Ubuntu 16.04
operating temperatur min.: 0°C
operating temperatur min.: 45°C
warranty: 24 Monate / 24 months
