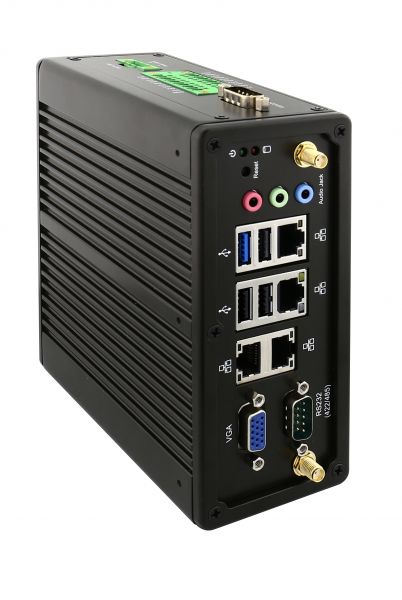

IBDRW100-EL
Embedded PC
Embedded Industrial PC for professional DIN Rail use Industrial computer in sturdy aluminium housing Shock and vibration resistant Designed for industrial applications in continuous operation Easy installation with DIN Rail kit Long-term availability
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
Order number: | 15000586 |
Manufacturer: | WM |
Matchcode manufacturer: | nein |
Manufacturer: | Winmate |
series name: | EmbeddedLine |
Manufacturer item number: | IBDRW100-EL |
mechanics: | Embedded-PC |
dimensions width: | 13,9 |
dimensions height: | 6,54 |
dimensions depth: | 15,2 |
Material housing: | Aluminium / aluminium |
protection front: | IP40 |
protection device: | IP40 |
colour: | dunkelgrau ähnlich RAL7022 / dark grey a |
controls: | 1 Key: Power |
wall mounting: | Ja / yes |
cooling: | lüfterlos / fanless |
DIN-Rail: | Ja / yes |
CPU Typ : | Celeron |
CPU Model : | N6210 |
CPU 64bit : | Ja |
CPU speed: | 1,20 GHz |
CPU cores: | 2 |
CPU socket: | FCBGA1493 |
RAM size (MB): | 4096 |
RAM Number of benches: | 1 |
RAM Typ : | SO-DDR4 |
RAM speed: | 3200 |
Grafik Controller: | Intel UHD Gen 10 Graphics |
Ethernet Controller: | 4 x Intel Ethernet Controller |
safety: | TPM 2.0 |
Digital I/O : | Ja / yes |
SSD design: | M.2 |
SSD max. number: | 1 |
SSD capacity (GB): | 128 |
Display: | 1x VGA |
USB : | 4 x USB 3.2 Gen.1 (Type-A) |
LAN: | 4x RJ45 - 10/100/1000 Mbps |
Audio : | Line-Out, Line-In, Mic in |
Seriell : | 1 x RS-232/422/485 |
serial: | 1 x RS-232/422/485 |
Digitale I/O : | Optional / optional |
controls: | Power On/Off |
voltage input DC: | 9-36 V/DC |
WLAN: | Optional / optional |
operating-system support: | Optional / optional |
operating temperatur min.: | -20°C |
operating temperatur min.: | 60°C |
warranty: | 24 Monate / 24 months |
