EACIL20-MR
Marine Hardware

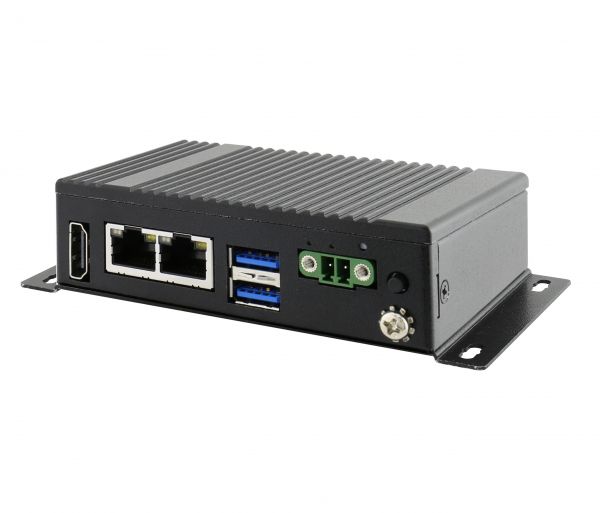

EACIL20-MR Marine Computer Intel Pentium N4200 1.1GHz (up to 2.5GHz) Protection class IP30 Fanless design 9V to 36V DC, 2-Pin Terminal Block Various mounting options: desk / wall / VESA / DIN-Rail

01-Industrial-Embedded-PC-EACIL20-MR
01-Industrial-Embedded-PC-EACIL20-MR
02-Industrial-Embedded-PC-EACIL20-MR
02-Industrial-Embedded-PC-EACIL20-MR
03-Industrial-Embedded-PC-EACIL20-MR
03-Industrial-Embedded-PC-EACIL20-MR
04-Industrial-Embedded-PC-EACIL20-MR
04-Industrial-Embedded-PC-EACIL20-MR
Order number: 15000605
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15000605
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: EmbeddedLine
Manufacturer item number: EACIL20-MR
mechanics: Embedded-PC
dimensions width: 10,0
dimensions height: 3,1
dimensions depth: 7,0
weight: 0,4
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP30
protection device: IP30
colour: schwarz / black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: Optional / optional
cooling: lüfterlos / fanless
chipset: Intel System on chip
CPU Typ : Pentium
CPU Model : N4200
CPU 64bit : Ja
CPU speed: 1,1GHz
CPU cores: 4
CPU socket: FCBGA1296
RAM size (MB): 4096
RAM Number of benches: 1
RAM Typ : LPDDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 505
Mini-PCIe-slot: 1
SSD design: eMMC
SSD max. number: 1
SSD capacity (GB): 32
Display: 1x HDMI 1.4 (optional)
USB : 2 x USB 3.2 Gen1x1 (Type-A)
LAN: 2x RJ45 - 10/100/1000 Mbps
voltage input DC: 9-36 V/DC
power adapter: 100 - 240 V/AC, 4-pin, extern
WLAN: Optional / optional
operating-system support: Optional / optional
operating temperatur min.: 0°C
operating temperatur min.: 55°C
warranty: 24 Monate / 24 months
