WM 19-IB70-19-PRS
Touch-Screen for 1-Finger Operation

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust steel sheet front panel (IP65 protected) Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Long-term availability

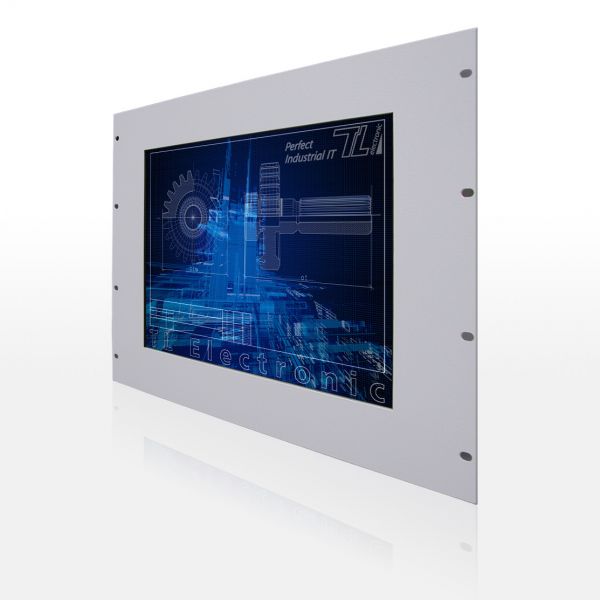

01-Industrie-Panel-PC-19-Zoll-Rack-Einbau-WM19.png / TL Produkt-Welten / Panel-PC / 19-Zoll Rack Mount / Touch-Screen für 1 Finger-Bedienung
01-Industrie-Panel-PC-19-Zoll-Rack-Einbau-WM19.png / TL Produkt-Welten / Panel-PC / 19-Zoll Rack Mount / Touch-Screen für 1 Finger-Bedienung
Order number: 23191583
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • Resistiver Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23191583
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: WM-Serie
Manufacturer item number: R19IB7T-OFM1
mechanics: 19 Rack Mount
dimensions width: 48,3
dimensions height: 39,9
dimensions depth: 8
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP65
protection device: IP20
colour: RAL 7035 / light grey
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 19
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 250 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: RS-232
Manufacturer controller: Premier
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 58 Watt
VGA: 1 x 15-pin D-sub
USB: 2 x USB 2.0
serial: 2 x RS-232, 1 x RS232/422/485
Audio: 1 x Line-in (3,5 mm), 2 x Speaker
LAN: 2x RJ45 - 10/100/1000 Mbps
PS/2: 2x Mini-DIN
Mainboard form factor: Mini-ITX
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,8 GHz
CPU cores: 4
CPU socket: CPU Onboard
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 1.2
connections SATA: 1
CPU class: Atom / Celeron
SSD design: 2.5"
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
MiniPCIe Slot WLAN/WWAN : 1
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
