WM 08-IB32-OF-PRU
Touch-Screen for 1-Finger Operation

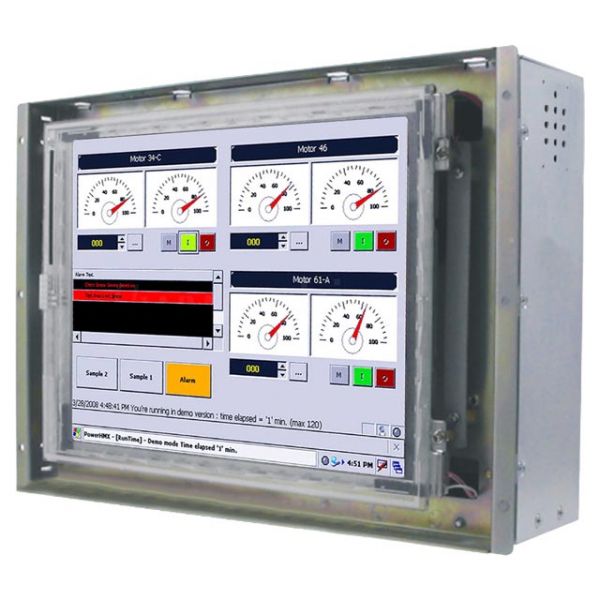

Built-in Panel PC for professional use Industrial Panel PC in sturdy open-frame steel sheet design Rear cover protected against contact (cage chassis) Designed for industrial applications in continuous operation Long-term availability

21-Front-right-R08IB3S-OFU1 / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / Touch-Screen für 1-Finger-Bedienung
21-Front-right-R08IB3S-OFU1 / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / Touch-Screen für 1-Finger-Bedienung
31-Panel-PC-Frontplatten / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / Touch-Screen für 1-Finger-Bedienung
31-Panel-PC-Frontplatten / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / Touch-Screen für 1-Finger-Bedienung

Order number: 23080061
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Montage als Openframe oder mit Frontplatte
  • Robuste Stahlblech-Mechanik
  • P-CAP / Resistiver Touch-Screen optional
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23080061
Manufacturer: WM
Matchcode manufacturer: ja
Manufacturer: Winmate
series name: SlimLine-Serie
Manufacturer item number: R08IB3S-OFU1
mechanics: Open Frame
dimensions width: 25,12
dimensions height: 17,5
dimensions depth: 5,5
Material housing: Stahlblech / steel sheet
protection device: IP20
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 8,4
aspect ratio: 4:3
resolution: 800 x 600
brightness: 600 cd/m²
contrast: 600:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 12 V/DC
voltage input AC: 110 - 240 V/AC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 35 Watt
HDMI: 1 x HDMI (Type-A)
USB: 1 x USB 3.0, 1 x USB 2.0
serial: 1 x RS-232, 1 x RS232/422/485
LAN: 2x RJ45 - 10/100/1000 Mbps
Mainboard form factor: 3,5"
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1066
Grafik Controller: Graphics in CPU
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 1.2
connections SATA: 1
CPU class: Atom / Celeron
HDD max. number: 1
HDD connection: SATA
HDD capacity (GB): 500
MiniPCIe Slot SSD : 1
SSD design: 2.5"
SSD capacity (GB): 64
RAID-System: Nein / no
CD/DVD-Writer : Nein / no
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Optional / optional
Bluetooth : Nein / no
camera: Nein / no
Barcode Scanner: Nein / no
RFID Reader : Nein / no
operating system: Optional
operating-system language version: deutsch / english / italian
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
